Prepare the upright z-actuator mount
Step 1: Embed a mounting nut in the z-actuator mount

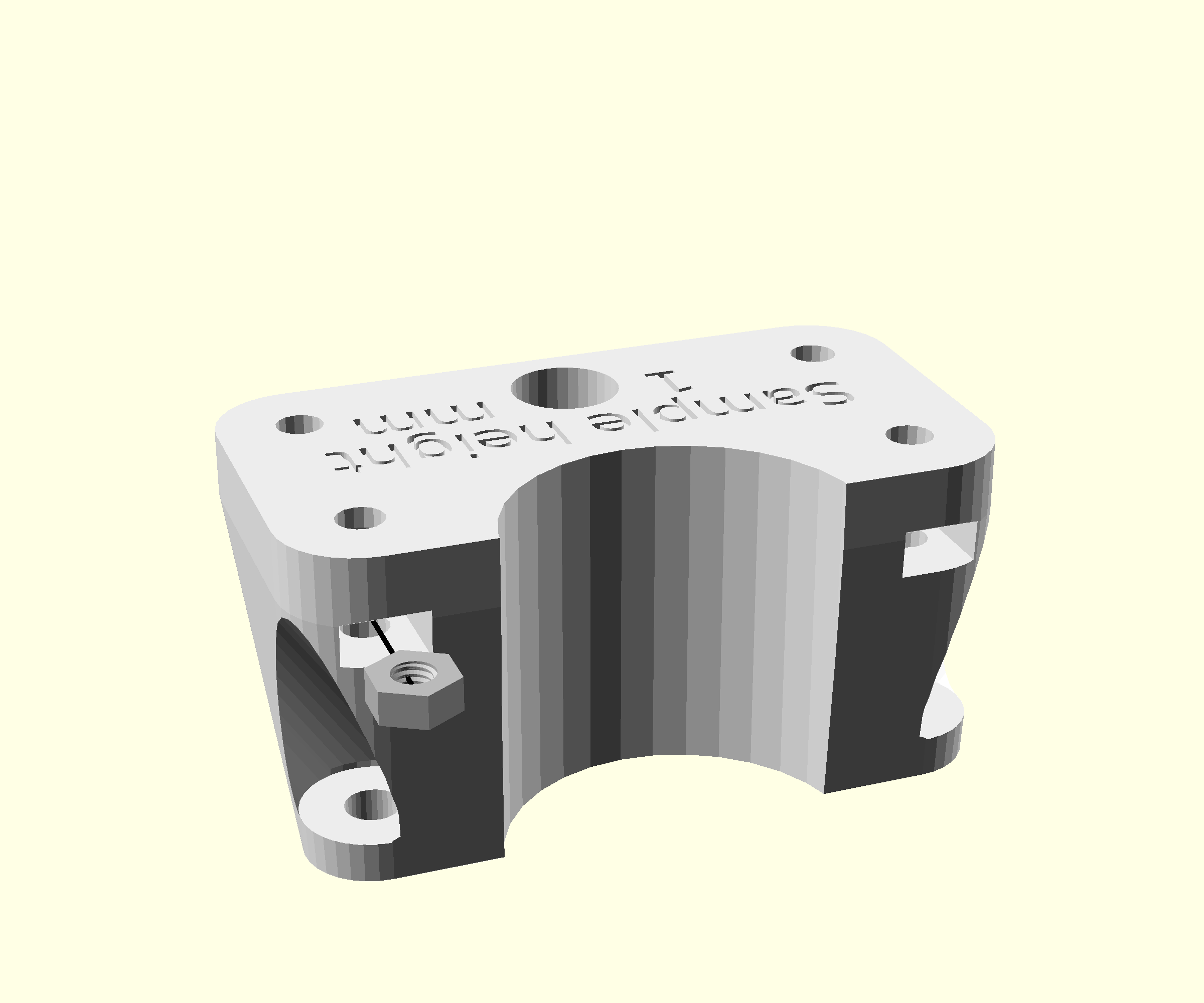

- Take the upright z-actuator mount
- Place an M3 nut in one of the slots at the top of the mount

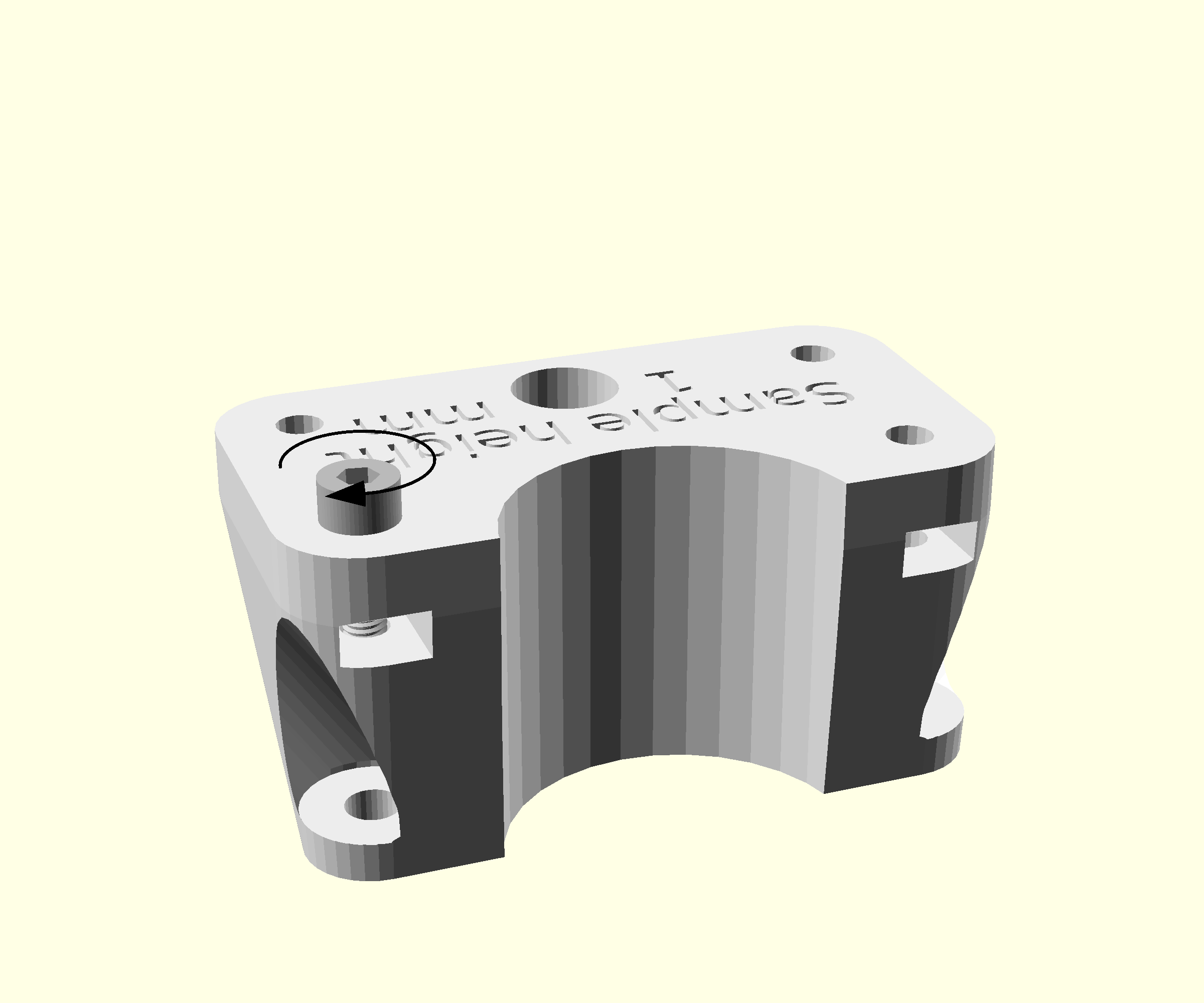

- Put an M3x10 cap head screw into the hole above the nut
- Tighten with a 2.5mm Ball-end Allen key until you feel reasonable resistance
- Unscrew and remove the screw. The nut should stay mounted.

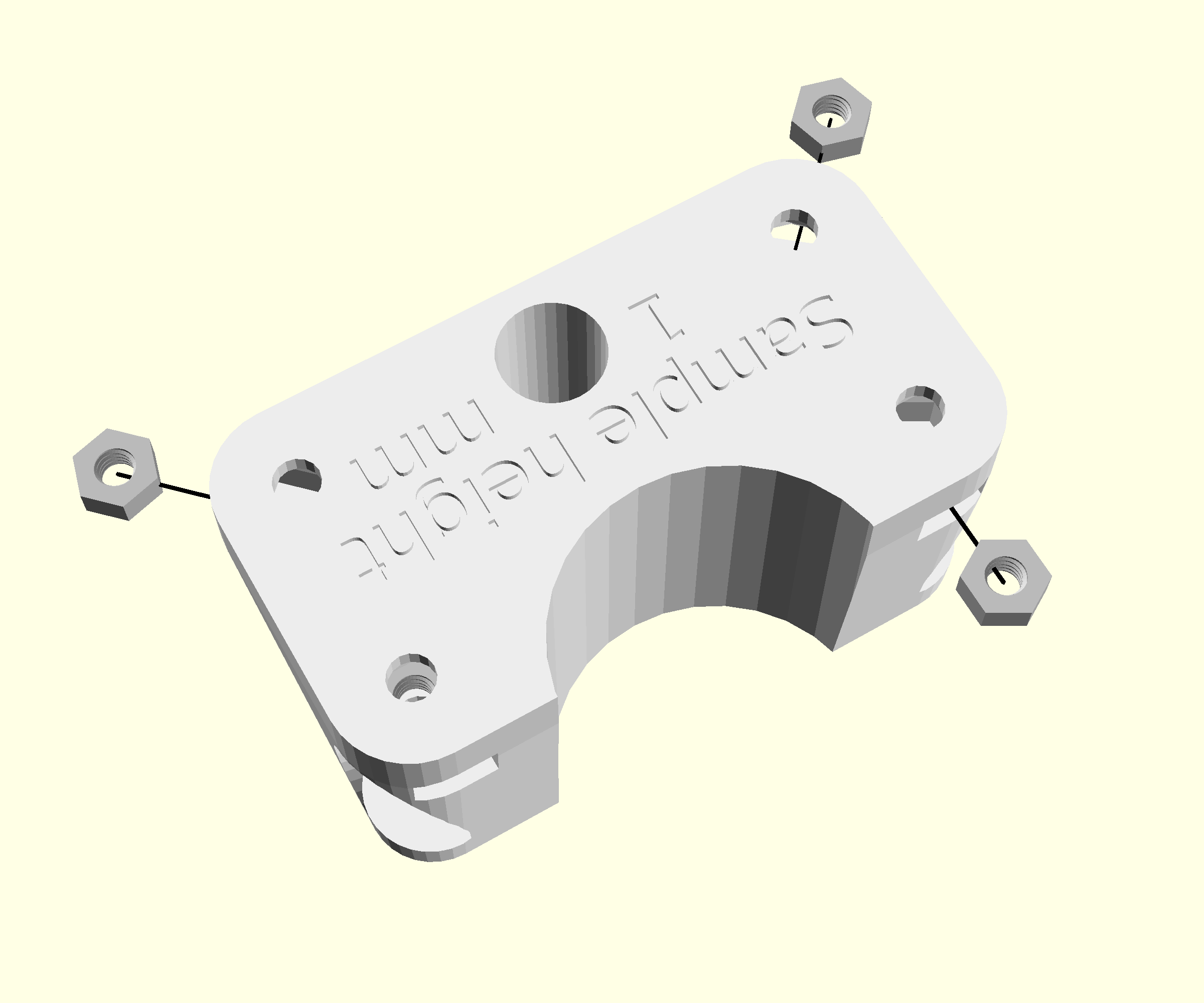

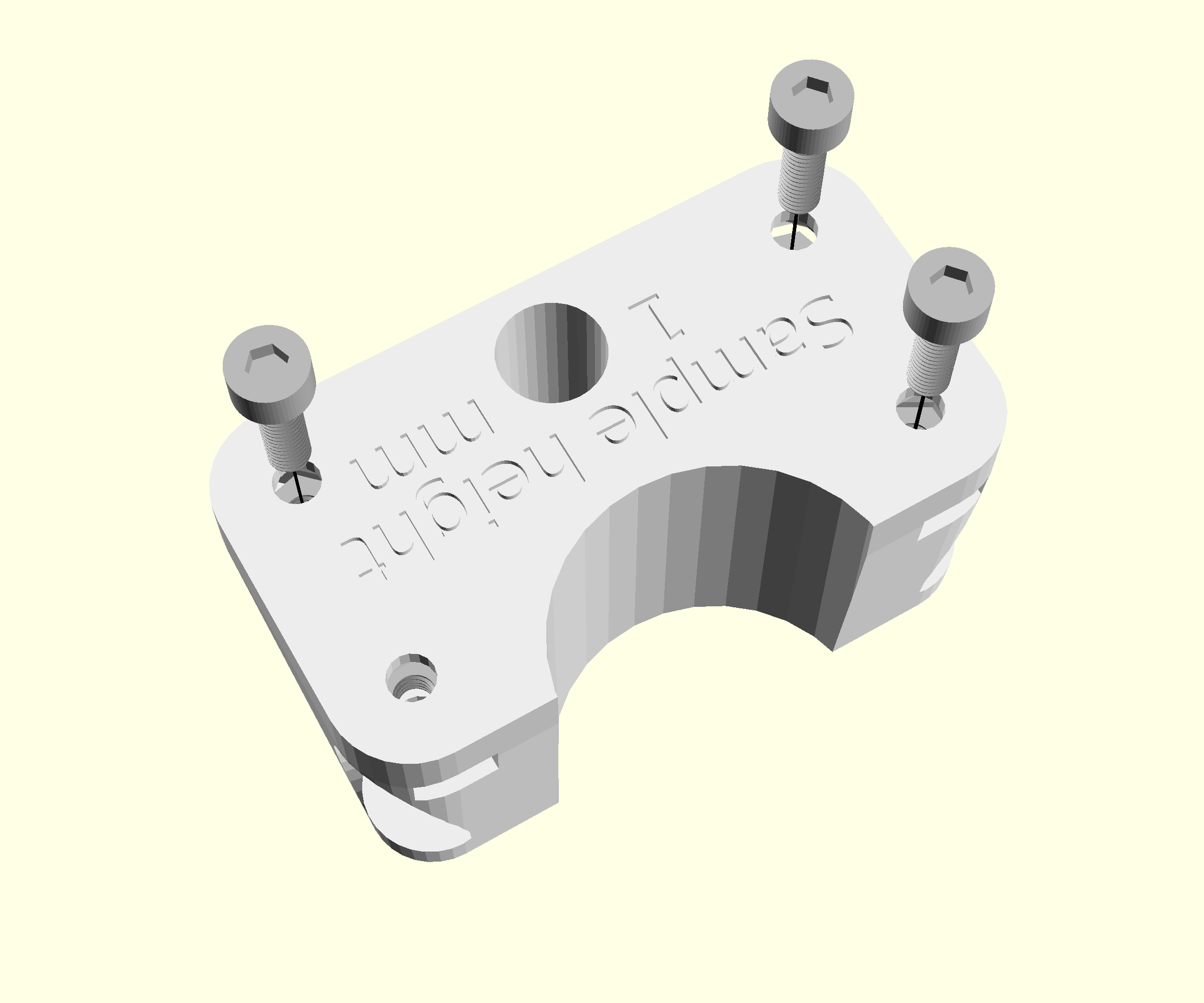

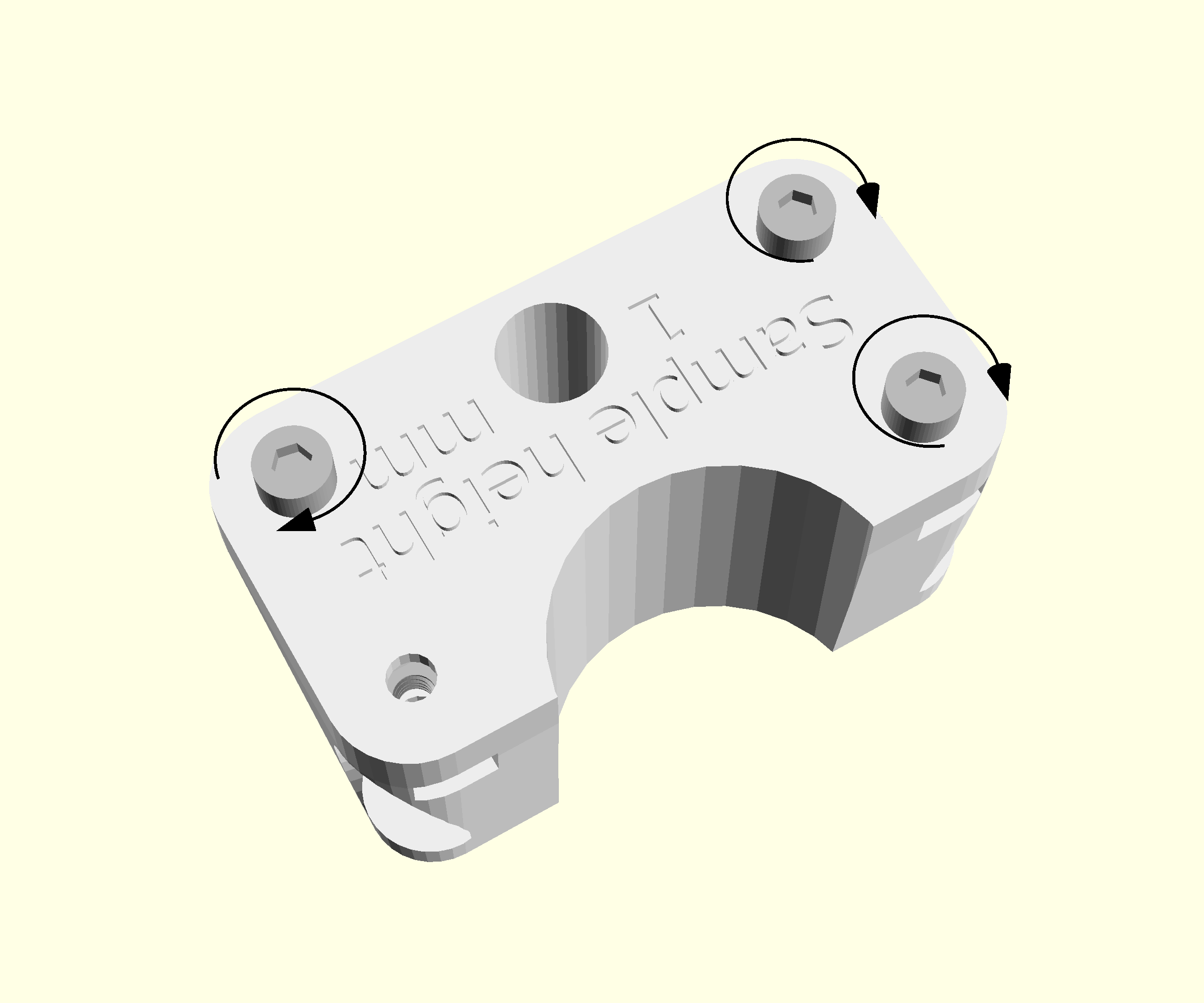

Step 2: Embed the other mounting nuts

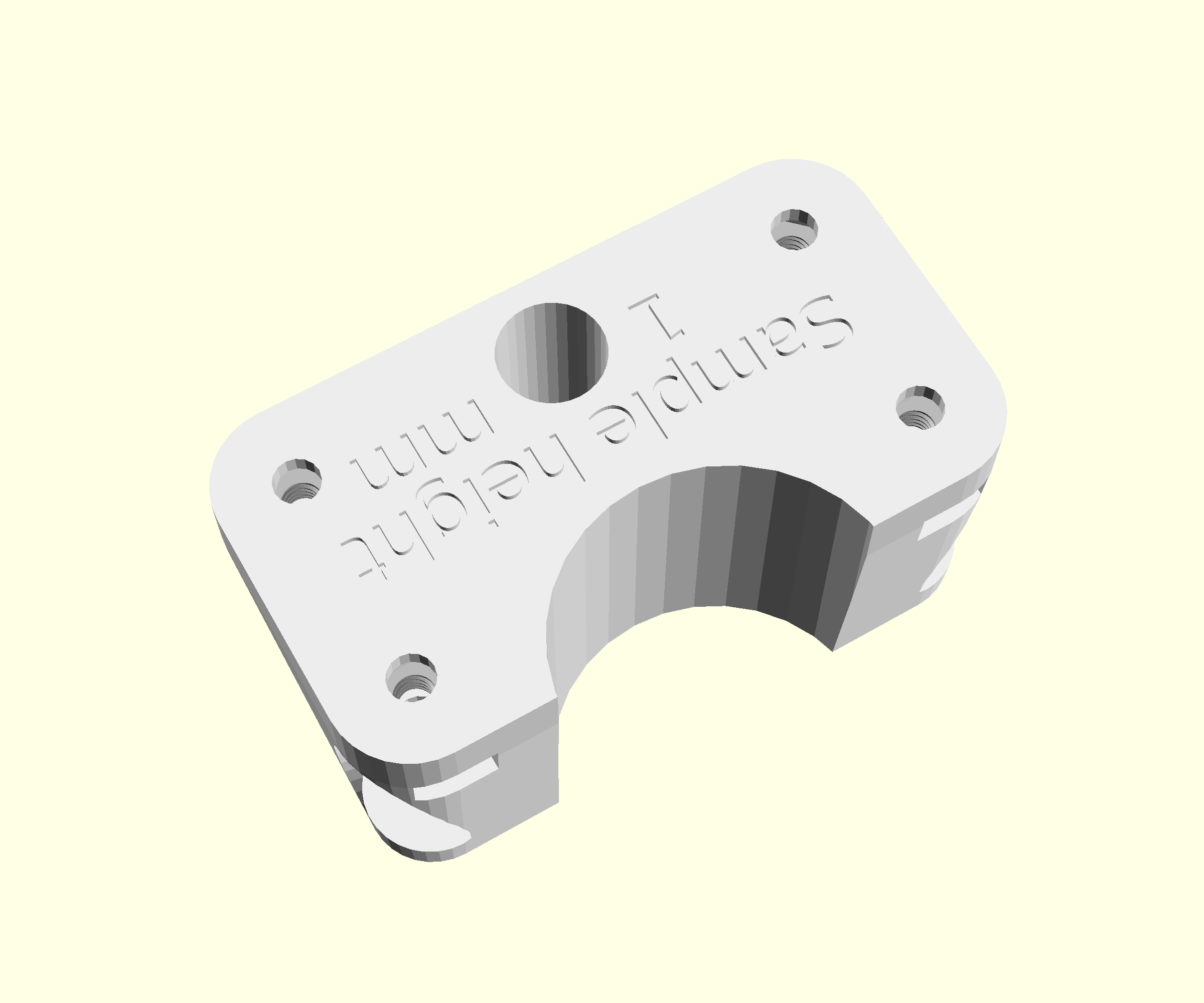

- Repeat the above process for the other three mounting points
